01 pair with inserts

Pair

YakAttack

YakAttack GridLoc Through Hull Wiring Kit XL

$36.00

1 option · In stock

Requires
1.5" hole
Grommet dimensions
2-5/16" x 2-5/16"
Insert hole sizes
A Blank x4; B 0.217" x2; C 0.265" x2; D 0.320" x2; E 0.389" x2; F 0.460" x2; G 0.550" x2
Includes

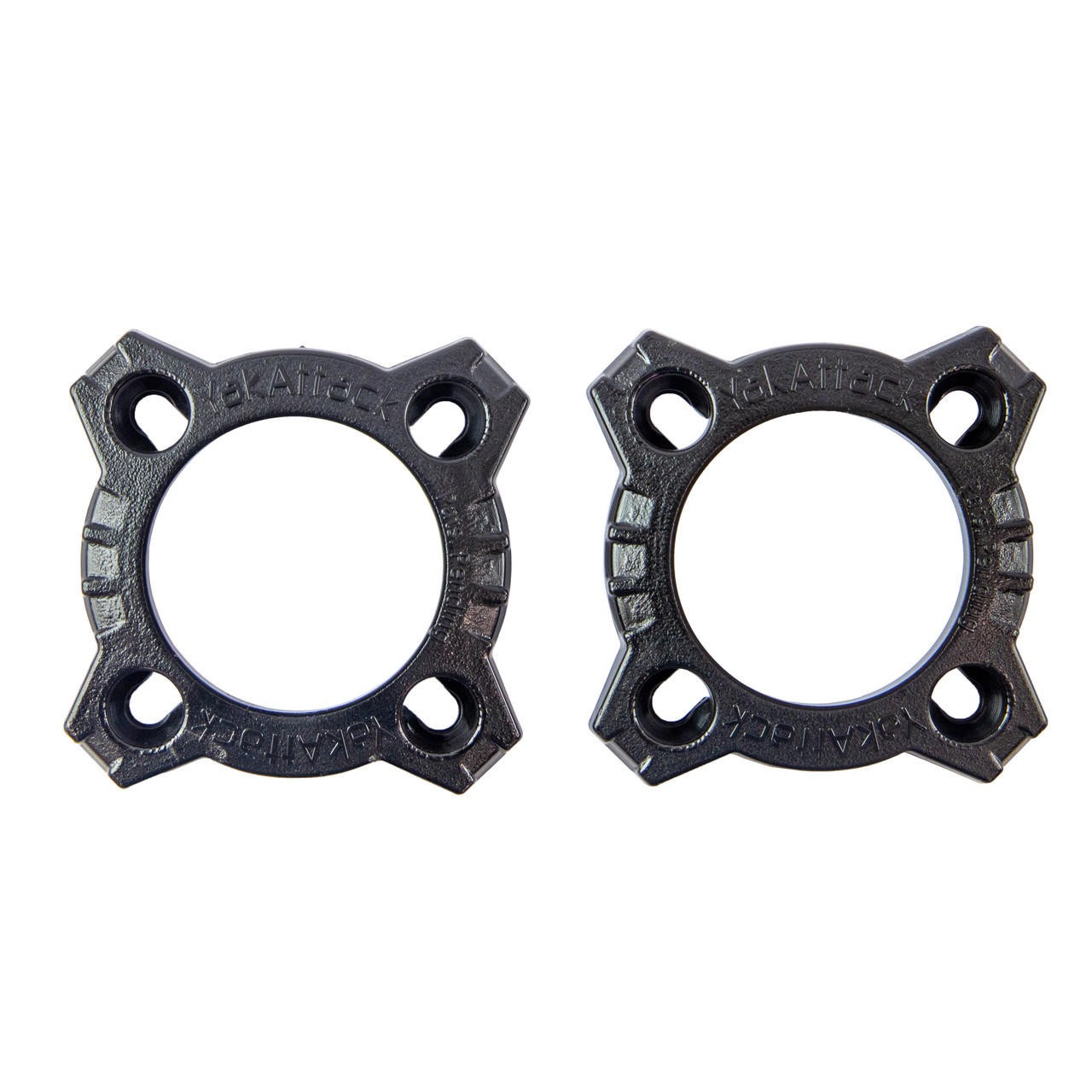

2 grommets with stainless hardware, 12 rubber inserts, 4 blank inserts
Package listing (no units printed)
Width 5.25, Height 9.50, Depth 2.25
Note
Marine sealant required for waterproof seal
Made in
USA
Warranty
Built for Life Guarantee

Manufacturer details

About the YakAttack GridLoc Through Hull Wiring Kit XL

The Through Hull XL Wiring Kit is the larger version of YakAttack's standard through-hull kit. It uses a 1.5" hole for larger-diameter parts such as couplers for live-imaging transducers like Garmin LiveScope, or bow-mounted trolling motors like the MotorGuide Xi3. It also works on removable fish finder pods and other hull wire routing jobs.

It matches the GridLoc Mounting Platform on the BlackPak Pro for battery-box and similar uses. Installation does not need backside access, but it does require a 1.5" hole. Included are 12 rubber inserts with common hole sizes from 0.217" to 0.550" diameter, 4 blank inserts, 2 nylon grommets, and 2 sets of hardware. For wires smaller than 0.217", use the standard GridLoc Through Hull Wiring Kit instead.

Marine sealant is required for a waterproof seal. Made in the USA. Covered by YakAttack's Built for Life Guarantee.

Available SKUs

NameSKUColorPriceQty
YakAttack GridLoc Through Hull Wiring Kit XL - Pairems-1004Pair$36.002
