Yak Power 5 Circuit Power Panel Switching System

About the Yak Power 5 Circuit Power Panel Switching System

Lights, power, charging! The Power Panel Switching System brings 12-volt plug-and-play connectivity to your kayak, making it quick and easy to add and control 12-volt electronics. With five switched outlets, you can connect your fish finder, bait well pump, LED lighting, phone charger, and any other 12-volt accessory you need on the water.

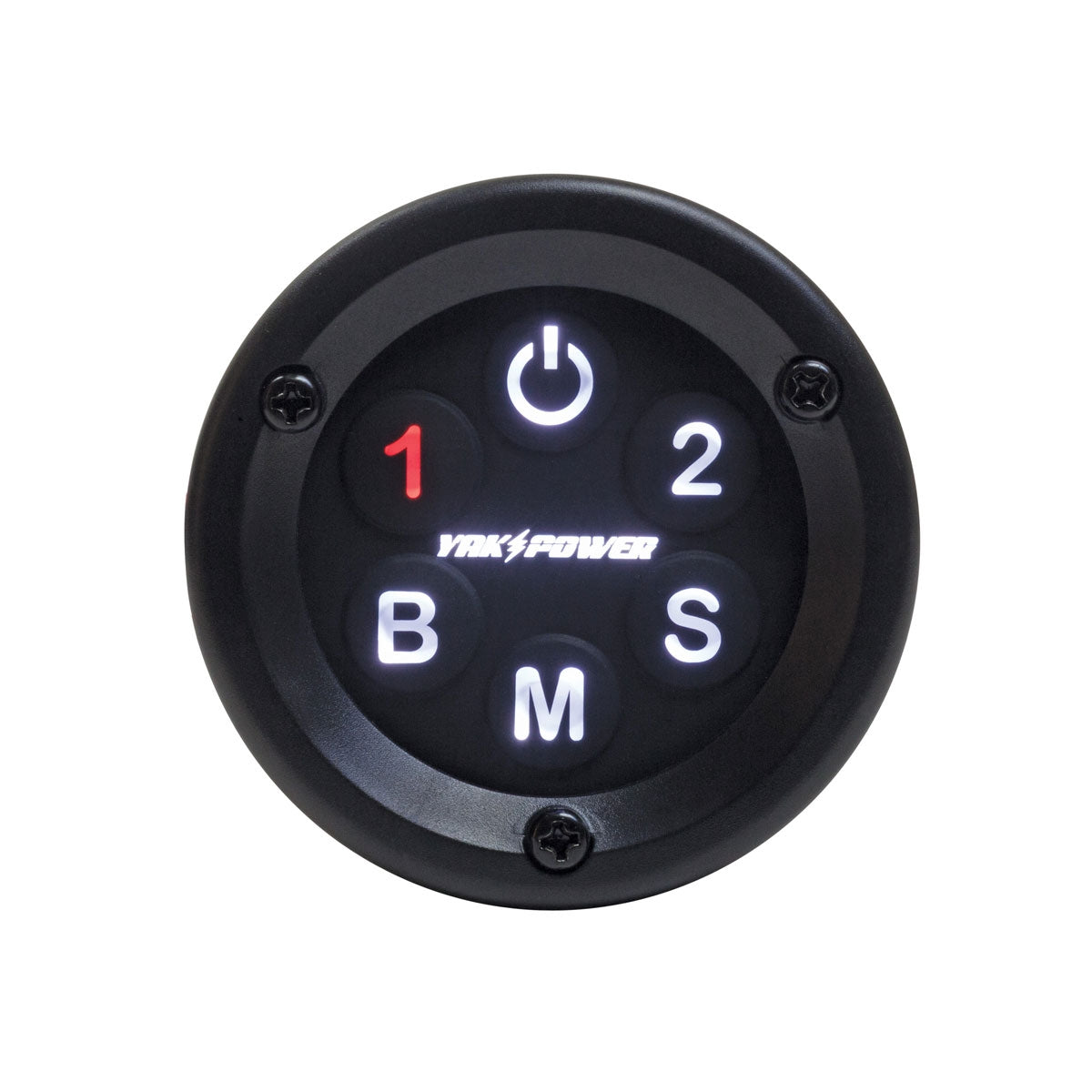

Each accessory is connected and controlled independently with its own button on the control panel. Each button turns red when activated, so it's easy to see which are in use. The master power switch powers the entire system up or down with one press to minimize power consumption.

The system uses Yak-Power plug-and-play connectors, so configuring and adding accessories is simple. It plugs directly into the Power Pack Battery Box or Battery Terminal Pigtails, with no cutting or splicing required.

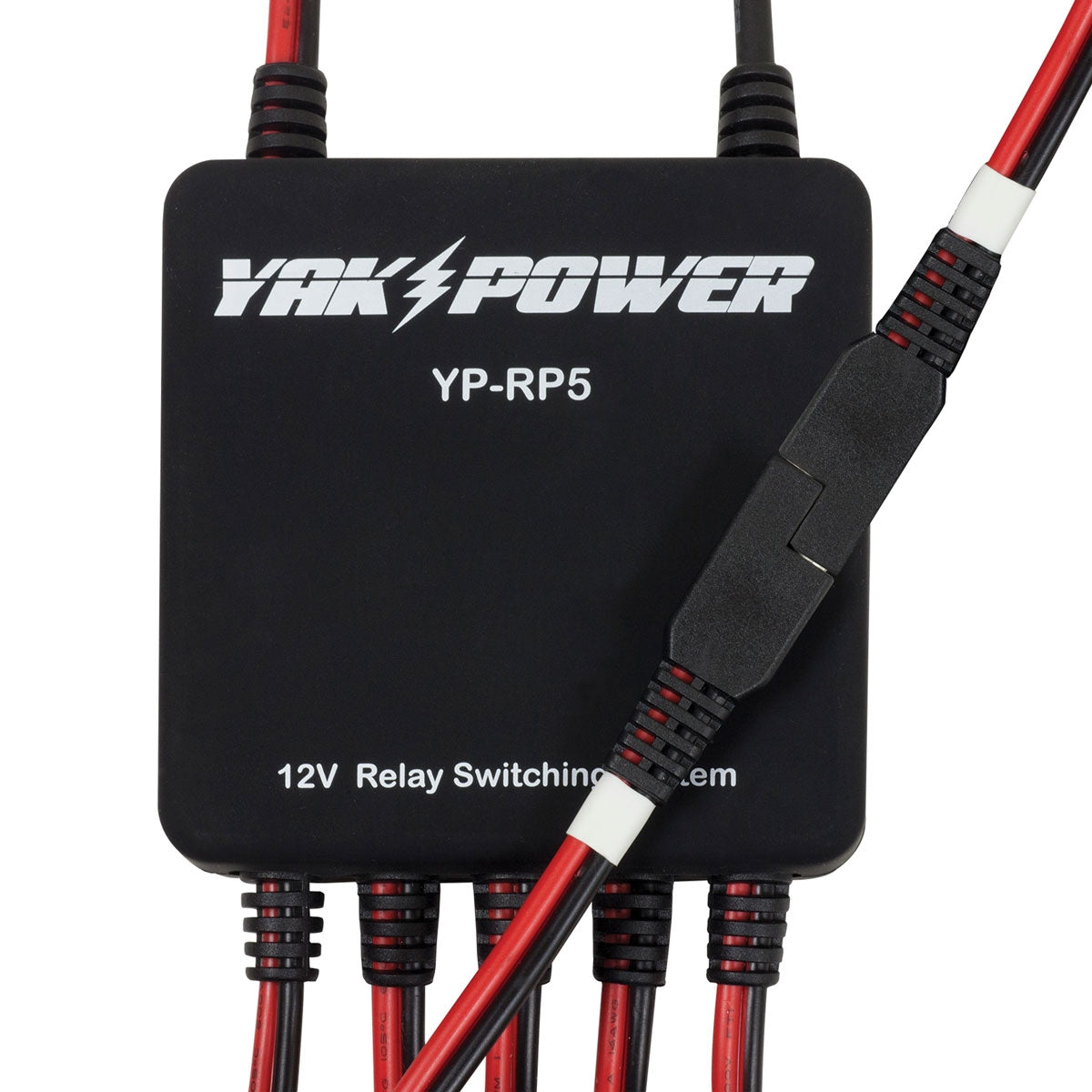

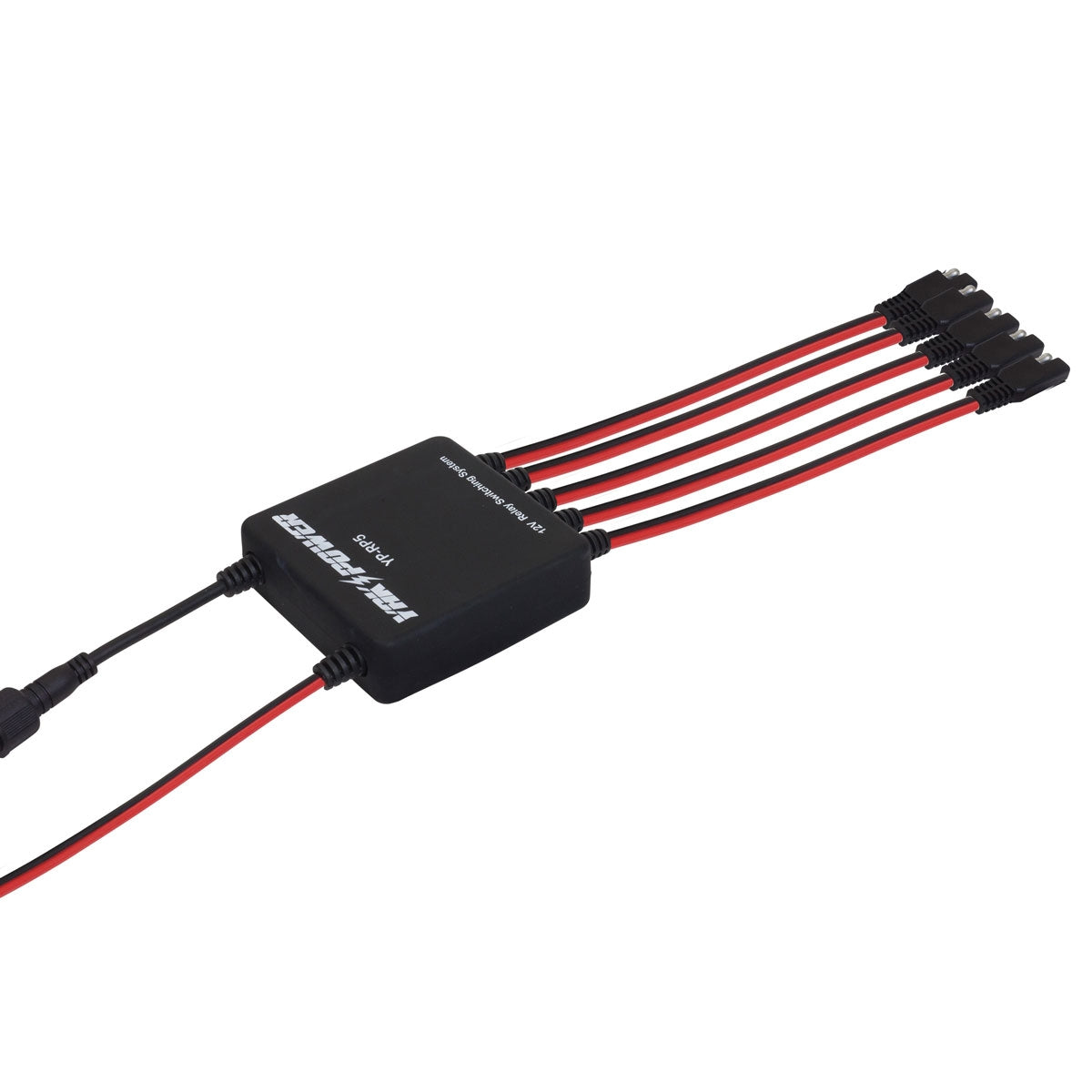

Features: - Easily add and control 12-volt electronics on your kayak - Waterproof, illuminated control panel - Master power button - Waterproof 5-outlet relay switching module (bow, mid-ship, stern, ACC 1, ACC 2) - No cutting or splicing required - Designed for 15 amps total current draw

Warning: If connecting a trolling motor, large LED light bar, agricultural sprayer, or other high-current 12V device, you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct wire gauge on the load side between the relay and the device, and the same gauge on the battery connection to the relay. Consult your device's specifications for proper wire sizing BEFORE installation.

Note: Always make sure the Yak-Power plug-and-play connectors are completely pushed together when connecting the system. Yak-Power uses its own custom-tooled, high-tolerance, snug-fitting SAE connectors with larger-gauge real copper wire for a quality, weatherproof, reliable connection. All Yak-Power plug-and-play accessories are designed to work together while maintaining correct battery polarity throughout the system; using other aftermarket connectors or splicing other connectors into the system may cause damage and void your warranty.

Caution: Always check the wire colors on Yak-Power accessory cables so the red (+) wire always connects to the red (+) wire on the connector it plugs into.
